20X170mesh plain dutch mesh

Introduction

Mesh:  20X170 mesh
Wire Dia:  0.25X0.16mm
Aperture:  130μm
Material:  201,202,301,302,304,304L,316,316L,321,430
Weave Type:  plain dutch
Roll Width:  1.0m,1.2m,1.5m
Roll Length:  30m
Application:  Separating,Filtering,Diffusing,Vents

Add Inquiry

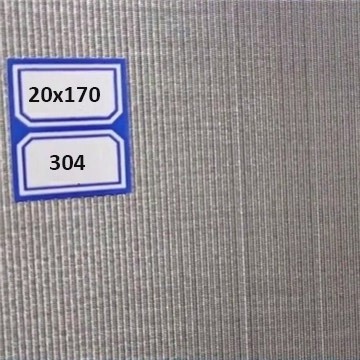

20X170 mesh plain dutch weave stainless steel wire mesh


Standard

u JB/T 5979-92

u Anping Web Wire Mesh Co.,LTD Plain Dutch Weave Process and Technical Parameter


Brief description

20X170 mesh plain dutch weave stainless steel wire mesh use 0.25X0.16mm diameter wire, by plain dutch weaving, woven 20X170 mesh opening for 130μm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better


Material

u 200 series : 201 202 205

u 300 series : 301 302 304 304L 309 309S 310 310S 316 316L 321

u 400 series : 410 420 430


Technical parameter



roll width: 1.0-1.6m

roll length: 30m


Application

u Separating

u Filtering

u Diffusing

u Vents


20X170 mesh plain dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
