80X600mesh plain dutch mesh

80X600 mesh plain dutch weave stainless steel wire mesh

Standard

u JB/T 5979-92

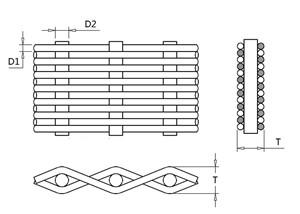

u Anping Web Wire Mesh Co.,LTD Plain Dutch Weave Process and Technical Parameter

Brief description

80X600 mesh plain dutch weave stainless steel wire mesh. Using 0.10X0.045mm diameter wire, by plain dutch weaving, woven 80X600 mesh opening for 37μm liquid or gas filter material.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

300 series:304L 316 316L

Technical parameter

roll width: 1.0-1.6m

roll length: 30m

Application

u Filtering

u Diffusing

80X600 mesh plain dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
