Mesh: 285X2100mesh
Wire Dia: 0.036X0.025mm
Aperture: 7μm
Material: 316L
Weave Type: twill dutch
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Filtering,Diffusing

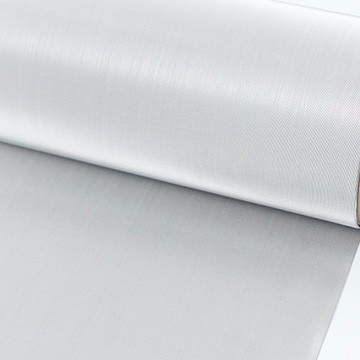

285X2100 mesh twill dutch weave stainless steel wire mesh
Standard
u JB/T 5979-92
u Anping Web Wire Mesh Co.,LTD Twill Dutch Weave Process and Technical Parameter
Brief description
285X2100 mesh twill dutch weave stainless steel wire mesh.Using 0.036X0.025mm diameter wire, by twill dutch weaving, woven 285X2100 mesh opening for 7μm liquid or gas filter.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
300 series: 316L
Technical parameter
roll width: 1.0-1.6m
roll length: 30m
Application
u Filtering
u Diffusing
285X2100 mesh twill dutch weave stainless steel wire mesh packing
Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper
or plastic film, outside wooden cases or wooden pallet.
