5 mesh plain steel mesh

5 mesh plain weave steel wire mesh

Standard

u GB/T 5330.1-2000,  GB/T 19628.2-2005

u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description

5 mesh plain weave steel wire mesh including 5 wires and openings of 1 inch Using 0.5-1.0mm diameter wire, by plain weaving, woven 5 mesh opening for 4.0-4.5mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

Q195 Q235 Q275

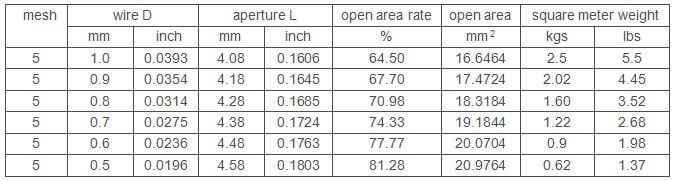

Technical parameter

roll width: 1.0-1.5m

Roll length: 30m

Application

u Ore screening

u Prevent pest

u Machine guards

u Radiator grille

5 mesh plain weave steel wire mesh packing

Steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
