Mesh: 22X22mesh
Wire Dia: 0.15-0.40mm
Aperture: 0.7-1.0mm
Material: Q195 Q235 Q275
Weave Type: plain weave
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Sifting powders,Filters,Extruder screen,Test sieves,Safety guards
22 mesh plain weave steel wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
22 mesh plain weave steel wire mesh including 22 wires and openings of 1 inch Using 0.15-0.40mm diameter wire, by plain weaving, woven 22 mesh opening for 0.7-1.0mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
Q195 Q235 Q275

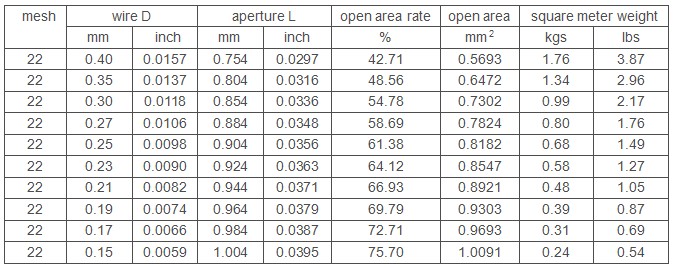

Technical parameter
roll width: 1.0-1.5m
Roll length: 30m
Application
u Sifting powders
u Filters
u Extruder screen
u Test sieves
u Safety guards
22 mesh plain weave steel wire mesh packing
Steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper
or plastic film, outside wooden cases or wooden pallet.
