Mesh: 40X40mesh
Wire Dia: 0.12-0.20mm
Aperture: 0.43-0.51mm
Material: pure copper wire
Weave Type: plain weave
Roll Width: 0.914m, 1.0m, 1.22m
Roll Length: 30m
Application: Sifting powders,Oil strainers,Test sieves,Shielding,Battery
40 mesh plain weave red copper wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
40 mesh plain weave red copper wire mesh including 40 wires and openings of 1 inch Using 0.12-0.20mm diameter wire, by plain weaving, woven 40 mesh opening for 0.43-0.51mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
C10200, C11000

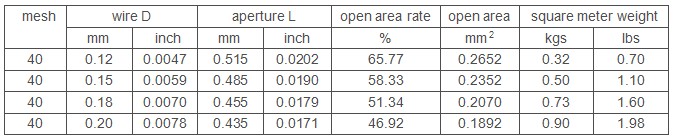

Technical parameter
roll width: 0.914m, 1.0m, 1.22m
roll length: 30m
Application
u Sifting powders
u Oil strainers
u Test sieves
u Shielding
u Battery
40 mesh plain weave red copper wire mesh packing
copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,
outside wooden cases or wooden pallet.
