Mesh: 120X120mesh
Wire Dia: 0.05-0.08mm
Aperture: 0.13-0.16mm
Material: phosphor bronze wire
Weave Type: plain weave
Roll Width: 0.914m, 1.0m, 1.22m
Roll Length: 30m
Application: Petrol gauze,Test sieves,EMI/RFI shielding mesh

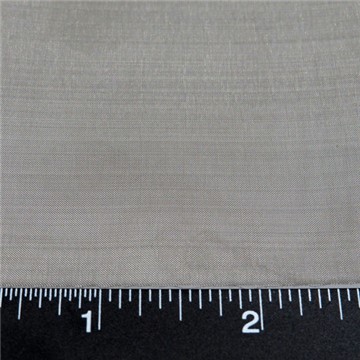

120 mesh plain weave phosphor bronze wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
120 mesh plain weave phosphor bronze wire mesh including 120 wires and openings of 1 inch Using 0.05-0.08mm diameter wire, by plain weaving, woven 120 mesh opening for 0.13-0.16mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
CuSn6
Technical parameter
roll width: 0.914m, 1.0m, 1.22m
roll length: 30m
Application
u Petrol gauze
u Test sieves
u EMI/RFI shielding mesh
120 mesh plain weave phosphor bronze wire mesh packing
Phosphor bronze wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper
or plastic film, outside wooden cases or wooden pallet.
