Mesh: 24X24mesh
Wire Dia: 0.12-0.35mm
Aperture: 0.7-0.9mm
Material: nickel/nickel alloy wire
Weave Type: plain weave
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Liquid/gas filters,EMI/RFI shielding mesh,Fuel cells/electrodes
24 mesh plain weave nickel wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
24 mesh plain weave nickel wire mesh including 24 wires and openings of 1 inch Using 0.12-0.35mm diameter wire, by plain weaving, woven 24 mesh opening for 0.7-0.9mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
u Pure nickel: N2 N4 N6
u Nichrome: Cr20Ni80

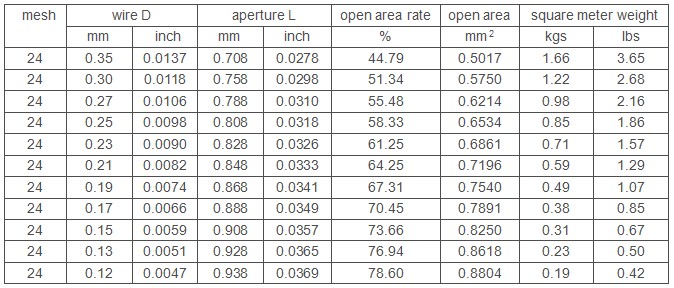

Technical parameter
roll width: 1.0-1.5m
roll length: 30m
Application
u Liquid/gas filters
u EMI/RFI shielding mesh
u Fuel cells/electrodes
24 mesh plain weave nickel wire mesh packing
Nickel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,
outside wooden cases or wooden pallet.
