Shape: diamond
LWDxSWD: 100x38mm
Thickness: 4-6mm
Strand Width: 5-7mm
Material: Stainless Steel,Steel,Copper,Aluminum,Nickel
Size: 1x1m,1x2m,1.22x2.44m
Application: heavy machinery and equipment protection, highway and railway safety mesh, water power facilities
100x38mm Expanded Metal
Standard
u QB/T 3896-1999
u Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter
Brief Description
Material
u Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321
u Steel:Q195, Q215, Q235
u Copper:red copper plate (C10200,C11000),brass plate(CuZn40,CuZn37,CuZn35,CuZn30,CuZn20,CuZn5)
u Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)
u Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600
Surface Treatment
u Galvanized: hot-dipped galvanized plate, electric galvanized plate
u PVC coated: Colors in black, green, blue, white, or customized by clients’ request.
u Powder coated: Black, white.
u Anodized

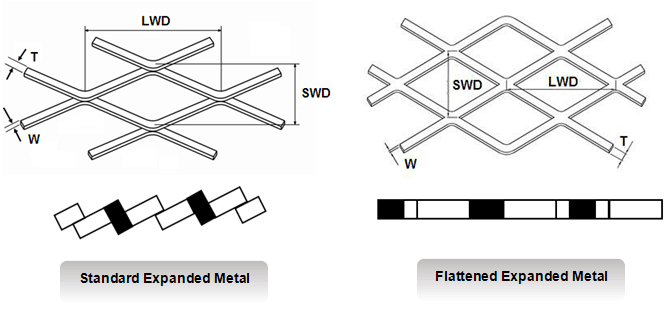

Form types
Expanded metal is generally formed in standard(raised) type or flattened type.

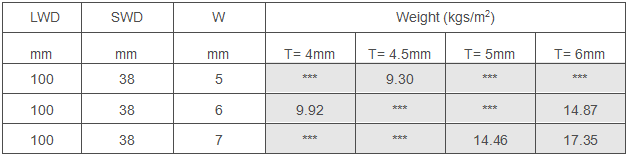

Technical parameter
Size: 1x1m,1x2m,1.22x2.44m
Note:
u LWD stands for long way of distance
u SWD stands for short way of distance
u T stands for mesh thickness
u W stands for strand width
u The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm3,
copper or nickel density is 8.90g/cm3,aluminum density is 2.73g/cm3
Application
u large-scale heavy machinery and equipment protection
u safety mesh for highway and railway
u water power facilities
u Reinforced for construction,highways and bridges.
Packing
Expanded metal should be packed firmly and securely.When packing,expanded metal appears in roll type and flat type.They are packed in wooden pallets generally.Each pallet load 1 ton-2.5 tons and wrapped with plastic film. We can also pack according to customer requirements.
