Shape: round
Size: 1200mm
Layer: single
Type: woven mesh
Form: punch press
Material: stainless steel,steel,copper,aluminum
Application: water treatment, rubber, plastics and other fields
D1200mm round filter disc
Standard
u Anping Web Wire Mesh Co.Ltd. Filter Discs Process and Technical Parameters
Brief description
D1200mm round filter disc is made of mesh and punch die by CNC punch pressing into piece, is a filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and CNC punching equipment, can produce a variety of specifications of the filter disc , uniform mesh , mesh solid , pressure is strong , renewable ( repeatedly) etc., it is widely used in water treatment and other fields .
Material
u Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430
u Steel : Q195, Q215, Q235
u Copper: C10200, C11000, CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5, CuSn6
u Aluminum: 1050, 5052, 5056

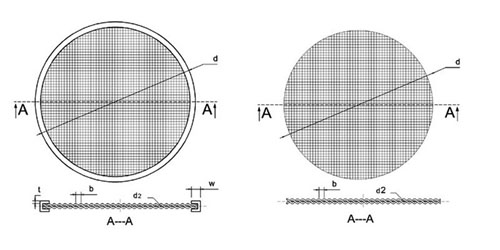

Structure
Application
u Water treatment
Packing
Filter Discs should be packed firmly and securely. When packing, filter discs are appears in pieces.They are wrapped with plastic bags or plastic films and then be put into cartons.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
