120mm Wedge Wire Tube

120mm Diameter Wedge Wire Screen Tube

Standard

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.

Brief description

120mm diameter wedge wire screen tube is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. This screen tube is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. 120mm diameter wedge wire screen tube’s sieve slot range from 0.05 to 2.5mm.It is widely used with deep well,submersible pumps,and water treatment equipment for environmental protection, desalination of seawater into the treatment of industrial water and domestic water, water treatment, water softening treatment. Or the petroleum industry: oil filtration and recycling end-product of chemical organic solution of acid, alkali liquid filtration, alcohol and other filtering. And it can also be used for hydro-geological exploration, drilling, construction,reservoirs precipitation, foundation digging precipitation, geothermal development and utilization of mineral exploitation, geothermal air conditioning, repair broken wells,underground water sources

Material

Stainless Steel:304 304L 316 316L 321

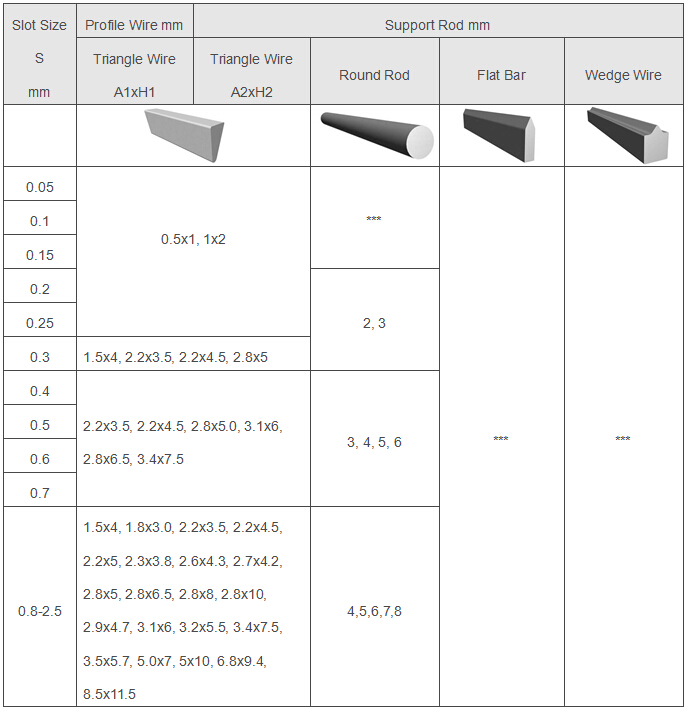

120mm diameter wedge wire screen tube technical parameter

u For wedge wire screen tube, profile wire type is generally triangle wire.Support rod includes triangle wire,

       round rod

u The length of wedge wire screen tube is 0.3m,0.6m,1m,2m,3m,6m.

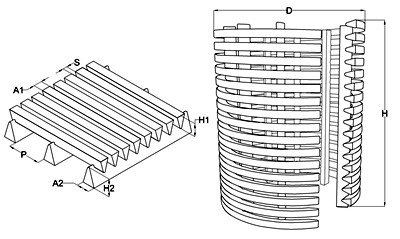

Note

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod.

Support Rod Distance (P): The distance between each support rod.

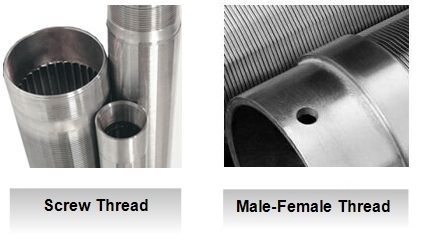

Wedge wire screen tube ending types

Application

u Deep well pump

u Water pump

u Environmental protection

u Oil industry

u Tap water processing

Packing
