Tube Diameter: 240mm
Slot Size: 0.05 to 2.5mm
Material: 304 304L 316 316L 321
Profile Wire: 0.5x1,1x2,1.5x4,2.2x3.5,2.2x4.5,2.8x5,3.1x6mm etc
Support Rod Type: triangle wire,round rod,flat bar,wedge wire
Tube Length: 0.3m,0.6m,1m,2m,3m,6m,12m
Application: deep well,wells and oil Wells,oil and water reservation,sand control,oil and gas filtration
240mm Diameter Wedge Wire Screen Tube
Standard
Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.
Brief description
Material
Stainless Steel:304 304L 316 316L 321
240mm diameter wedge wire screen tube technical parameter
u For wedge wire screen tube, profile wire type is generally triangle wire.Support rod includes triangle wire,
round rod,flat bar,wedge wire.
u The length of wedge wire screen tube is 0.3m,0.6m,1m,2m,3m,6m,12m.
Note
Slot Size (S): The distance between each profile wire.
Profile Wire: Triangle wire is common type.
Support Rod: Triangle wire is common type. It can also be round rod, flat bar, wedge wire.
Support Rod Distance (P): The distance between each support rod.

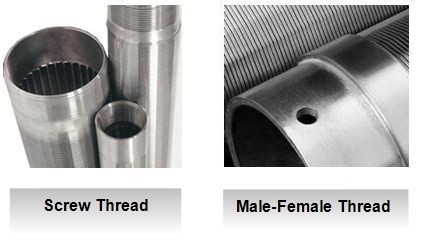

Wedge wire screen tube ending types
Application
u deep well
u wells and oil Wells
u oil and water reservation
u oil tubing
u sand control
u oil and gas filtration
Packing
