0.25mm flat wedge wire screen

0.25mm slot flat wedge wire screen

Standard

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.

Brief description

0.25mm slot flat wedge wire screen is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. This screen is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. 0.25mm slot flat wedge wire screen is widely used for feed screening, stool separation,gratings and stairs,facade wall project and so on.

Material

Stainless Steel:304 304L 316 316L 321

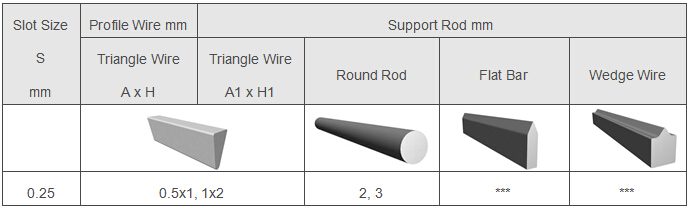

0.25mm flat wedge wire screen technical parameter

u For flat wedge wire screen, profile wire type is triangle wire.Support rod includes triangle wire, round rod.

u Common size of flat wedge wire screen: 500x500mm-3000x3000mm,500x1000mm-2000x3000mm

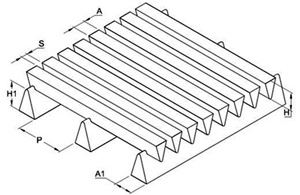

Note

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod.

Support Rod Distance (P): The distance between each support rod.

Application

u feed screening

u stool separation

u gratings and stairs

u facade wall project

Packing

Flat wedge wire screen should be packed firmly and securely. When packing, flat wedge wire screen appears in panels. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
