Shape: hexagonal hole
LWDxSWD: 3x3mm
Thickness: 0.4mm,0.5mm
Strand Width: 0.5mm
Material: Stainless steel,steel,copper,aluminum,nickel
Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m and so on
Application: speaker grille,filtration support
3x3mm Hexagonal Hole Expanded Metal
Standard
u QB/T 3896-1999
u Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter
Brief Introduction
3x3mm hexagonal hole expanded metal is made from 0.4mm and 0.5mm thickness metal plate by uniformly slit and stretched,and after surface treatment,it becomes bright,corrosion resistance and long service life.Hexagonal hole expanded metal is evolved from the foundation of diamond hole expanded metal.The angle between straight edge and bevel edge is a little large.and hexagonal hole expanded metal have properties of toughness,impact resistance,beautiful appearance and other characteristics.
Material
u Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321
u Steel:Q195, Q215, Q235
u Copper:red copper plate (C10200,C11000),brass plate(CuZn40,CuZn37,CuZn35,CuZn30,CuZn20,CuZn5)
u Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)
u Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600
Surface Treatment
u Galvanized: hot-dipped galvanized plate, electric galvanized plate
u PVC coated: Colors in black, green, blue, white, or customized by clients¡¯ request.
u Powder coated: Black, white.
u Anodized
u Spray painting

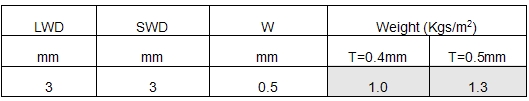

3x3mm hexagonal hole expanded metal specification parameter:
Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m
Note
u LWD stands for long way of distance
u SWD stands for short way of distance
u T stands for mesh thickness
u W stands for strand width
u The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm3,
copper or nickel density is 8.90g/cm3,aluminum density is 2.73g/cm3
Application
u speaker grille
u filtration support
Packing
Expanded metal should be packed firmly and securely.When packing,expanded metal appears in roll type and
flat type.They are packed in wooden pallets generally.Each pallet load 1 ton-2.5 tons and wrapped with plastic
film. We can also pack according to customer requirements.
