31.8x16.5mm Hexagonal Hole Expanded Metal

31.8x16.5mm Hexagonal Hole Expanded Metal

Standard

u QB/T 3896-1999

u Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter

Brief Introduction

31.8x16.5mm hexagonal hole expanded metal is made from 1.0mm thickness metal plate by uniformly slit and stretched,and after surface treatment,it becomes bright,corrosion resistance and long service life.Hexagonal hole expanded metal is evolved from the foundation of diamond hole expanded metal.The angle between straight edge and bevel edge is a little large.and hexagonal hole expanded metal have properties of toughness,impact resistance,beautiful appearance and other characteristics.

Material

u Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321

u Steel:Q195,Q235,Q275

u Copper: red copper plate (T1, T2, T3), brass plate(H59, H62, H65, H68)

u Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)

u Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600

Surface Treatment

u Galvanized: hot-dipped galvanized plate, electric galvanized plate

u PVC coated: Colors in black, green, blue, white, or customized by clients’ request.

u Powder coated: Black, white.

u Anodized

u Spray painting

31.8x16.5mm hexagonal hole expanded metal specification parameter:

Size: 1x1m,1x2m,1.22x2.44m and so on.

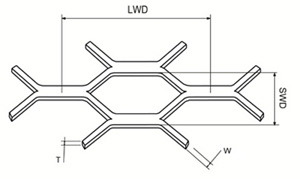

Note

u LWD stands for long way of distance

u SWD stands for short way of distance

u T stands for mesh thickness

u W stands for strand width

u The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm³,

copper or nickel density is 8.90g/cm³,aluminum density is 2.73g/cm³

Application

u car grilles

u filter cartridges

u speaker grilles

u crafts and decoration

u farming fences and other usages.

Packing

Expanded metal should be packed firmly and securely.When packing,expanded metal appears in roll type and flat type.They are packed in wooden pallets generally.Each pallet load 1 ton-2.5 tons and wrapped with plastic film. We can also pack according to customer requirements.
