100X800mesh plain dutch mesh

100X800 mesh plain dutch weave stainless steel wire mesh

Standard

u JB/T 5979-92

u Anping Web Wire Mesh Co.,LTD Plain Dutch Weave Process and Technical Parameter

Brief description

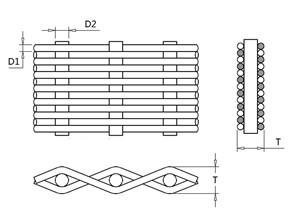

100X800 mesh plain dutch weave stainless steel wire mesh. Using 0.10X0.035mm diameter wire, by plain dutch weaving, woven 100X800 mesh opening, it can be used as liquid or gas filter material.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

300 series: 304L 316 316L

Technical parameter

roll width: 1.0-1.6m

roll length: 30m

Application

u Filtering

u Diffusing

100X800 mesh plain dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
