130X1100 mesh twill dutch

130X1100 mesh twill dutch weave stainless steel wire mesh

Standard

u JB/T 5979-92

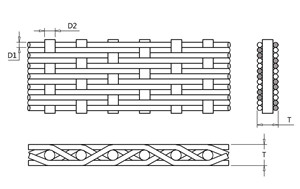

u Anping Web Wire Mesh Co.,LTD Twill Dutch Weave Process and Technical Parameter

Brief description

130X1100 mesh twill dutch weave stainless steel wire mesh.Using 0.071X0.05mm diameter wire, by twill dutch weaving, woven 130X1100 mesh opening for 17μm liquid or gas filter.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

u 200 series: 201 202 205

u 300 series: 301 302 304 304L 309 309S 310 310S 316 316L 321

u 400 series: 410 420 430

Technical parameter

roll width: 1.0-1.6m

roll length: 30m

Application

u Filtering

u Diffusing

130X1100 mesh twill dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
