165X1400 mesh twill dutch stainless steel mesh

165X1400 mesh twill dutch weave stainless steel wire mesh

Standard

JB/T 5979-92

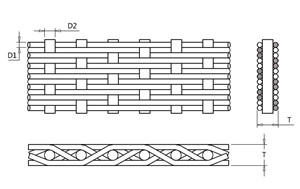

Anping Web Wire Mesh Co.,LTD Twill Dutch Weave Process and Technical Parameter

Brief description of 165X1400 mesh twill dutch weave stainless steel wire mesh

165X1400 mesh twill dutch weave stainless steel wire mesh.Using 0.063X0.04mm diameter wire, by twill dutch weaving, woven 165X1400 mesh, it can be used as liquid or gas filter.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

300 series: 304L 316 316L

Common Grade	Characteristics
304L	A low-carbon version of 304. The lower carbon content makes the wire softer for easier weaving and significantly improves its welding characteristics.
316	Offers superior resistance to pitting corrosion from chlorides, brines, and halogens compared to 304. It features high creep strength at high temperatures and excellent durability at sub-zero temperatures. Widely used for chemical processing mesh.
316L	A low-carbon version of 316. It provides better wire flexibility for weaving and eliminates the risk of intergranular corrosion after welding.

165X1400 mesh twill dutch weave stainless steel wire mesh technical parameter

roll width: 1.0-1.6m

roll length: 30m

165X1400 mesh twill dutch weave stainless steel wire mesh application

Oil & gas industry: sand control screens,refinery filtration

Aerospace & aviation: fuel & hydraulic systems, aviation fuels and aircraft hydraulic fluids filtration

Chemical & plastics processing: precoat filter systems,polymer melt & extruder screens

Water treatment: cartridge filters,pleated / cylindrical filter cartridges,water purification systems, municipal water treatment, industrial effluent processing

165X1400 mesh twill dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
