174X1700 mesh twill dutch mesh

174X1700 mesh twill dutch weave stainless steel wire mesh

Standard

u JB/T 5979-92

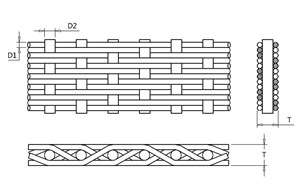

u Anping Web Wire Mesh Co.,LTD Twill Dutch Weave Process and Technical Parameter

Brief description

174X1700 mesh twill dutch weave stainless steel wire mesh.Using 0.063X0.032mm diameter wire, by twill dutch weaving, woven 174X1700 mesh opening for 13μm liquid,gas filter.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

300 series: 316L

Technical parameter

roll width: 1.0-1.6m

roll length: 30m

Application

u Filtering

u Diffusing

174X1700 mesh twill dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
