16 mesh phosphor bronze wire mesh

16 mesh plain weave phosphor bronze wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description of 16 mesh phosphor bronze wire mesh

16 mesh plain weave phosphor bronze wire mesh including 16 wires and openings of 1 inch Using 0.25-0.40mm diameter wire, by plain weaving, woven 16 mesh opening for 1.1-1.3mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

CuSn6 (C51900)

Grade CuSn6 (C51900) phosphor bronze wire mesh, composed of roughly 92% copper and 6% tin, is a premium industrial cloth highly valued for its exceptional tensile strength, fatigue life, and wear resistance. It also features excellent solderability, non-magnetic shielding properties, and high thermal/electrical conductivity.

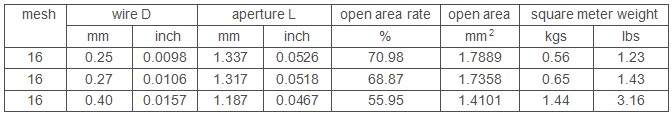

16 mesh phosphor bronze wire mesh technical parameter

roll width: 0.914m, 1.0m, 1.22m

roll length: 30m

16 mesh phosphor bronze wire mesh application

Electromagnetic Screening: RFI (Radio Frequency Interference) and EMI (Electromagnetic Interference) shielding in sensitive electronics and server rooms.

Filtration & Printing: fluid/gas filtration, industrial sieving, and base meshes for screen printing.

Food & Agriculture: sifting, grading, and processing in the food, beverage, and agricultural sectors.

Construction & Landscaping: screen for soil sifting, sand grading, and aggregate separation.

Architectural Decoration Design:decorative, breathable mesh panels in kitchen cabinets, media consoles, custom wine lockers, and sports locker rooms.

Interior Architecture: room dividers, decorative ceiling panels, wall/podium coverings, and protective structural infill panels.

Art & Luxury Accents: decorative signage, sculptures, and artisan jewelry.

16 mesh plain weave phosphor bronze wire mesh packing

Phosphor bronze wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
