40 mesh phosphor bronze

40 mesh plain weave phosphor bronze wire mesh

Standard

u GB/T 5330.1-2000,  GB/T 19628.2-2005

u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description

40 mesh plain weave phosphor bronze wire mesh including 40 wires and openings of 1 inch Using 0.12-0.20mm diameter wire, by plain weaving, woven 40 mesh opening for 0.43-0.51mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

CuSn6

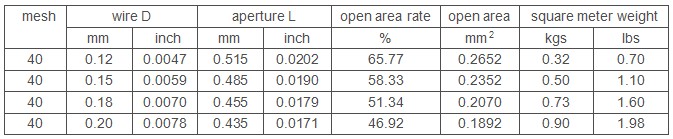

Technical parameter

roll width: 0.914m, 1.0m, 1.22m

roll length: 30m

Application

u Air vents

u Fan guards

u Filters

40 mesh plain weave phosphor bronze wire mesh packing

Phosphor bronze wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
