120 mesh monel wire mesh

120 mesh plain weave monel wire mesh

Standard

u GB/T 5330.1-2000,  GB/T 19628.2-2005

u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description

120 mesh plain weave monel wire mesh including 120 wires and openings of 1 inch Using 0.05-0.09mm diameter wire, by plain weaving, woven 120 mesh opening for 0.12-0.16mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

u Monel 400

u Monel 600

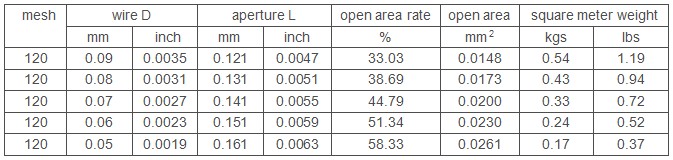

Technical parameter

roll width: 1.0-1.5m

roll length: 30m

Application

u Air vents

u Liquid/gas filters

u EMI/RFI shielding mesh

u Chemical processing

120 mesh plain weave monel wire mesh packing

Monel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.

MONEL® is a trademark of Special Metals Corporation.
