20-160 model knitted wire mesh

20-160 model knitted wire mesh

Standard

Q/SG12-1-79 Q/YSZZ-88-91

Anping Web Wire Mesh Co.,LTD Knitted Wire Mesh Process and Technical Parameter

Brief description of 20-160 model knitted wire mesh

20-160 model knitted wire mesh use 0.10-0.30mm wire, knitted into a mesh of interlocking loops, application for liquid/gas separation or gas/water separation in the process of filtration,screening,distillation,evaporation and absorption etc. The mesh has the characteristics of high filtering accuracy,good penetrability,flexibility,

electrical conductivity, thermal conductivity etc.

Knitted wire mesh material

Stainless steel: 201 202 302 304 304L 316 316L 321 430

Carbon steel : Q195 Q235 Q275

Brass: CuZn40 CuZn37 CuZn35 CuZn30 CuZn20 CuZn5

Copper: C10200 C11000

Aluminum: 1050 1060 1100 5052 5056 5083

Nickel: N2 N4 N6 Cr20Ni80 Monel400 Monel600

Plastic: PP PE

Mesh Material	Characteristics
SS304	Excellent general corrosion resistance, good mechanical strength, and high ductility for easy knitting. It is the most cost-effective and widely used stainless steel for knitted wire mesh.
SS304L	Low-carbon version of SS304. It prevents carbide precipitation during welding, offering superior corrosion resistance around joint areas while maintaining the excellent flexibility and structural integrity required for knitted structures.
SS316	Contains molybdenum, providing significantly higher resistance to pitting and crevice corrosion in chloride environments and organic acids compared to SS304. Ideal for high-performance chemical separation.
SS316L	Low-carbon version of SS316. It eliminates intergranular corrosion caused by welding, making it the industry standard for knitted mesh in highly corrosive chemical, petrochemical, and pharmaceutical processes.
Monel	A nickel-copper alloy offering exceptional strength and resistance to corrosion in seawater, hydrofluoric acid, sulfuric acid, and alkalis. Highly resilient, making it perfect for marine engineering and severe chemical environments.
Nickel	It offers excellent electrical and thermal conductivity, making it suitable for specialized electronic shielding and chemical processing mesh.
Titanium	Outstanding strength-to-weight ratio and exceptional resistance to wet chlorine, nitric acid, and seawater.
Inconel	It exhibits superb oxidation resistance and maintains high mechanical strength at extreme temperatures (up to 1000°C). Widely used in aerospace, engine exhaust insulation, and high-heat demisters.
Copper	Extremely ductile and easy to knit into high-density structures. It features exceptional thermal/electrical conductivity and natural antimicrobial properties. Widely used for RFI/EMI shielding and heavy-duty cleaning mesh.
Polypropylene (PP)	Excellent resistance to acids, alkalis, and organic solvents. Often co-knitted with metal wires to enhance the structural stability and fine-droplet capture efficiency of demister pads.
PTFE	Exceptional chemical inertness, resisting almost all aggressive chemicals and solvents. It operates at higher temperatures than PP, has a very low coefficient of friction, and is hydrophobic. Ideal for mist eliminators in highly corrosive gas streams.

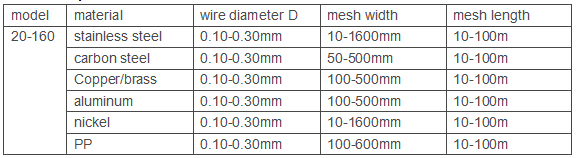

20-160 model knitted wire mesh technical parameter

Notes :

1. 20-160 model: it has 20 openings in the mesh width of 160mm

2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm

3. The mesh can be made into single strand, double strand, multi-strand etc.

4. The surface include flattened and crimped.

20-160 model knitted wire mesh application

EMI and RFI Shielding: mesh gaskets,mesh seals,cable shielding mesh tapes & screening sleeves ,electronic enclosure grounding gaskets,waveguide and connector interface shield seals

Automotive Components: air filter in cars or tractors,automotive breather elements,air intake pre-cleaners, engine ventilation flame arrestor packs,automotive airbag inflator filtration elements,muffler vibration mounts, vibration dampers,engine mounts for cars, trucks, marine engines,motors, and aircraft components,heat shield supports, cable tray and hanger brackets

Gas/Liquid, Gas/Water, and Oil/Water Separation:wire mesh demister pads / mist eliminators,gas-liquid coalescer pads & blanket packs,separator vessel internal mesh packs,oil-water separator coalescing mesh cartridges,vacuum pump exhaust oil mist eliminator elements

Cleaning Industry :industrial scouring pads,plastic extrusion die & screw cleaning mesh balls,heavy-duty machinery maintenance wire scourers,commercial kitchen heavy-gauge wire mesh scrubbers

Medical Devices: medical gas line filtration and purifier elements,autoclave sterilization tray liners & dividers,MRI room enclosure shielding gaskets,medical negative pressure suction fluid separation mesh,medical implant mesh,surgical lmplants

Textile Fabrics:removable insulation blanket mesh liners,mesh safety gloves & protective garments,conductive wire-synthetic blended smart textile mesh

Rangehood Filters:commercial kitchen range hood grease filters,cooker hood wire mesh baffle inserts,multi-layer vent hood extraction pads,kitchen exhaust system mist and fat traps

Decorative Mesh: architectural, cladding and built environment,fashion & jewellery mesh

Animal Enclosures: aviary mesh for indoor and outdoor aviaries or animal enclosures,can safely house birds, small mammals, some reptiles and pest control.

Battery industry: hydrogen production,electrolysis, fuel cells, and power-to-gas conversion,polymer electrolyte membranes, proton exchange membranes, and ion exchange membranes.

Mining applications: gas detection, HVAC, dust control, noise attenuation, spark-arresting, filtration, self-contained breathing apparatus and hazard signalling.

Oil & Gas industry : HVAC, flame arresting, spark arresting, filtration, mist elimination (demisting), gas detection, hazard signalling and insulation.

Packing

Knitted wire mesh is packed in plastic spools ,wrapped in moisture-proof paper or plastic film, outside

wooden cases or wooden pallet.

MONEL® is a trademark of Special Metals Corporation.
