40mm double intermediate

40mm double intermediate crimped wire mesh

Standard

u GB/T 13307-1991

u Anping Web Wire Mesh Co.,LTD Double Intermediate Crimped Weave Process and Technical Parameter

Brief description

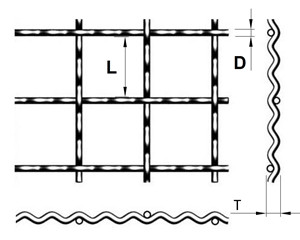

40mm double intermediate crimped wire mesh Using 2.5-5.0mm diameter wire, by double intermediate crimped weaving, woven 40mm opening for solid particles. This wire diameter and mesh with ratio reasonable,flat surface, strong wear resistance and firm structure.

Material

u Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430

u Steel: Q195 Q235 Q275 10 15 15Mn 20 20Mn 30 30Mn 40 40Mn 45 45Mn 50 50Mn 60 60Mn 65 65Mn 70

u Copper: CuZn40 CuZn37 CuZn35 CuZn30 CuZn20 CuZn5 CuSn6 C10200 C11000

u Aluminum: 1050 1060 1100 5052 5056

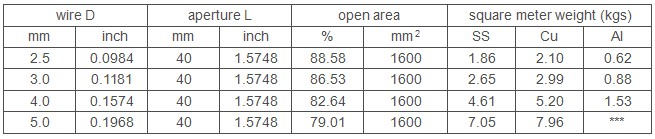

Technical parameter

roll width: 1.0-4.0m

roll length: 15.0m,30.0m,60.0m,90.0m

Application

u Architecture

u Decorative grill

u Vibrating Screens

u Zoo enclosure

40mm double intermediate crimped wire mesh packing

Crimped wire mesh is packed in rolls,wrapped in moisture-proof paper or plastic film, outside wooden cases

or wooden pallet.
