60x24mm Expanded Metal

60x24mm Expanded Metal

Standard

u QB/T 3896-1999

u Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter

Brief Description

60x24 mm aperture heavy expanded metal is made from 2-6mm thickness metal plate by uniformly slit and stretched,forming 60x24 mm diamond opening in the metal sheet. The mesh is kind of heavy load mesh and be with features of slip resistant,rugged,big bear gravity,strong tensile,good ventilation and light performance,easy in maintenance and construction etc. It is widely used in large-scale heavy machinery and equipment protection, highway and railway safety mesh, water power facilities,and can also be used for construction, highways, bridges as reinforced.

Material

u Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321

u Steel:Q195, Q215, Q235

u Copper:red copper plate (C10200,C11000),brass plate(CuZn40,CuZn37,CuZn35,CuZn30,CuZn20,CuZn5)

u Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)

u Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600

Surface Treatment

u Galvanized: hot-dipped galvanized plate, electric galvanized plate

u PVC coated: Colors in black, green, blue, white, or customized by clients’ request.

u Powder coated: Black, white.

u Anodized

Form types

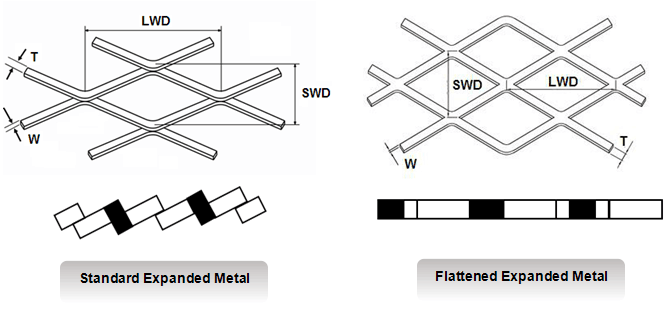

Expanded metal is generally formed in standard(raised) type or flattened type.

u Flattened expanded metal is formed by flattening process based on standard expanded metal. Its strand width and bond are in the same horizontal plane with plate surface. Compared with standard expanded metal,the plate thickness will be thinner and opening will be larger.

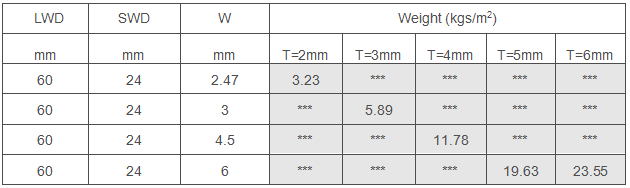

Technical parameter

Size: 1x1m,1x2m,1.22x2.44m

Note:

u LWD stands for long way of distance

u SWD stands for short way of distance

u T stands for mesh thickness

u W stands for strand width

u The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm³,

       copper or nickel density is 8.90g/cm³,aluminum density is 2.73g/cm³

Application

u large-scale heavy machinery and equipment protection

u safety mesh for highway and railway

u water power facilities

u Reinforced for construction,highways and bridges.

Packing

Expanded metal should be packed firmly and securely.When packing,expanded metal appears in roll type and flat type.They are packed in wooden pallets generally.Each pallet load 1 ton-2.5 tons and wrapped with plastic film. We can also pack according to customer requirements.
