10x50 slot perforated metal

10x50mm slot hole perforated metal mesh

Standard

u GB/T 12620-2008

u Anping Web Wire Mesh Co.Ltd. Perforated Metal Mesh Process and Technical Parameters

Brief description

10x50mm slot hole perforated metal mesh is made of metal plate match 10x50mm aperture punching die, by CNC punch pressing, cutting, slicing, leveling, grease, deburring, and surface treatment processes of roll or sheet mesh. We have 14 complete production lines and advanced numerical equipment, it will be combinations of different material, pitch and opening rate,to produce more specifications mesh,it is widely used in protection, decoration, filtering fields.

Material

u Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430

u Steel : Q195, Q215, Q235

u Copper: 10200, C11000, CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5

u Aluminum: 1050, 5052, 5056

Surface Treatment

u Stainless steel: polished finish

u Steel: galvanization(electroplating,hot-dip), PVC coated

u Aluminum: anodizing, spray paint, powder coated

Technical parameter

Slot hole round ends Z staggered

Slot hole round ends 90° straight

Slot hole Z staggered

Slot hole 90° straight

Size:1x1m,1x2m,1.22x2.44m

Note:

u L,R stand for opening size

u Z1,Z2 stand for center to center distance

u T stands for mesh thickness

u Open area % is the total area of the holes divided by the total area of the sheet and is expressed

       as a percent.

u The weight is calculated according to stainless steel,stainless steel density is 7.93g/cm³,

       copper or nickel density is 8.90g/cm³,aluminum density is 2.73g/cm³

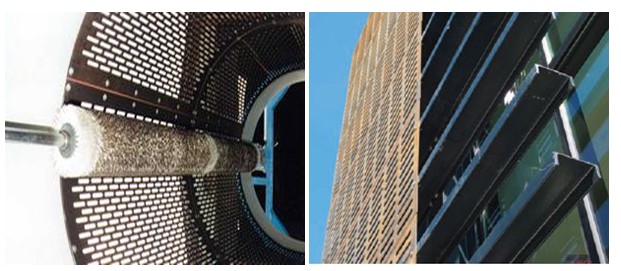

Application

u Decorative

u Filter

u Furniture

u Mine screen

u Storage shelves

u Fence

Packing
