D500mm round filter disc

D500mm Round Filter Disc

Standard

Anping Web Wire Mesh Co.Ltd. Filter Discs Process and Technical Parameters

Brief Description of D500mm Round Filter Disc

D500mm round filter disc is made of mesh and punch die by CNC punch pressing into pieces , after combination , spot welding, edging or sintering , is a filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and CNC punching equipment, can produce a variety of specifications of the single , double and multiple filter disc , uniform mesh , mesh solid , pressure is strong , renewable ( repeatedly) etc., it is widely used in water , oil, gas , rubber, plastics , and other fields .

D500mm Round Filter Disc Material

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430

Steel : Q195, Q215, Q235

Copper: C10200, C11000, CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5, CuSn6

Aluminum: 1050, 5052, 5056

Material	Key Characteristics
Stainless Steel 304	Excellent general corrosion resistance and strength; highly cost-effective and the most widely used wire mesh disc for standard filtration.
Stainless Steel 304L	Low-carbon 304; prevents intergranular corrosion after welding; ideal for multi-layer sintered or welded filter packs.
Stainless Steel 316	Contains molybdenum for superior resistance to chlorides, pitting, and acids; preferred for chemical and marine filtration.
Stainless Steel 316L	Low-carbon 316; eliminates weld decay; offers maximum corrosion resistance for critical welded filter elements in harsh environments.
Brass	Copper-zinc alloy; offers good spark resistance, easy formability, and adequate filtration for low-pressure oil or water systems.
Copper	Exceptional thermal/electrical conductivity; highly ductile for customized mesh shapes; naturally antimicrobial for water purification.
Steel (Carbon Steel)	High structural strength and economy; high pressure resistance,
Aluminum	Extremely lightweight with good natural corrosion resistance; non-magnetic

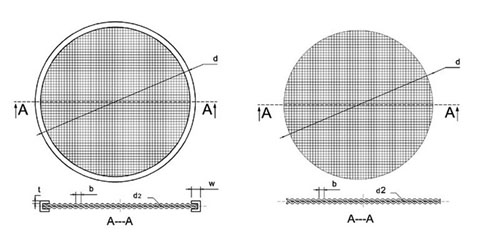

D500mm Round Filter Disc Structure

D500mm Round Filter Disc Application

liquid filtration

gas filtration

oil and fuel filtration

process water filtration

protection of small components

inline filtration

final protection before sensitive parts

filtration in test setups

filtration in injection systems

compact filtration in machines

Filter discs for industrial filtration

Wire Mesh Discs Packing
