Pipe Diameter: 3-1/2”
Type: perforated screen
Material: stainless steel 304, 304L, 316, 316L
Pipe Length: 3m,6m,12m
Application: vertical wells, deviated well, horizontal wells, cased hole and open hole wells in kinds of oil, gas, water wells and sand control industry
3-1/2”perforated sand control screen
Standard
u SY/T 6916-2012
u Anping Web Wire Mesh Co.Ltd. Sand Control Screen Process and Technical Parameters
Brief description
3-1/2” perforated sand control screen is made of 3-1/2” base pipe, the max 96mm outside diameter of stainless steel perforated screen and support rings. With precision controllable aperture and excellent corrosion resistance, the good ability of the overall strength and resistance to deformation, high density and low flow resistance, it can be used in vertical wells, deviated well, horizontal wells, cased hole and open hole wells, and kinds of oil, gas, water wells and sand control industry
Material
u Stainless steel : 304, 304L, 316, 316L

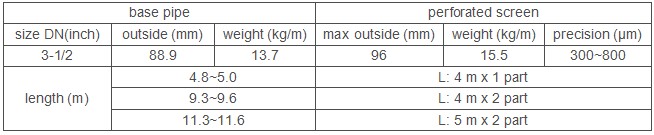

Technical parameter
Note
u Perforated screen slot size: between 20mm to 0.7mm
u Perforated screen type: bridge slotted screen, round hole screen etc.
Application
u Vertical wells, deviated well and horizontal wells
u Cased hole and open hole wells
u Oil, gas, water wells
Packing
Sand control screen should be packed firmly and securely. When packing, sand control are appears in pipes. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
