600mm Wedge Wire Tube

600mm Diameter Wedge Wire Screen Tube

Standard

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.

Brief description

600mm diameter wedge wire screen tube is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. This screen tube is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration.600mm diameter wedge wire screen tube’s sieve slot range from 0.05 to 6mm. It is widely used in sand control, filtration, petrochemicals industry, sewage treatment, dewatering applications, paper making industry.

Material

Stainless Steel:304 304L 316 316L 321

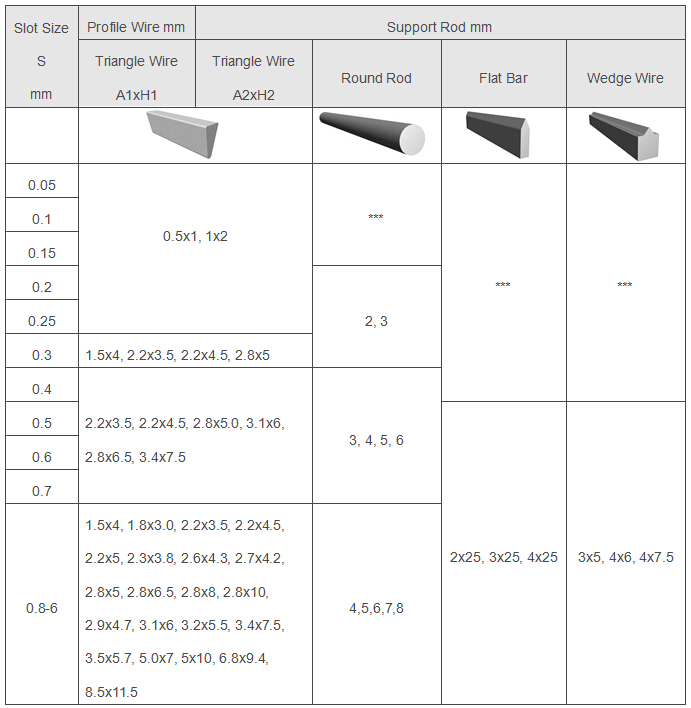

600mm diameter wedge wire screen tube technical parameter

u For wedge wire screen tube, profile wire type is generally triangle wire.Support rod includes triangle wire,

       round rod,flat bar,wedge wire.

u The length of wedge wire screen tube is 0.3m,0.6m,1m,2m,3m,6m,12m.

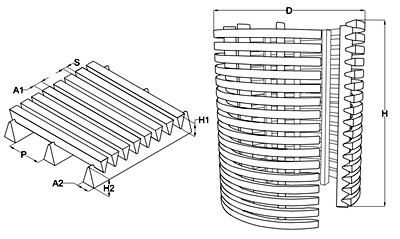

Note

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod, flat bar, wedge wire.

Support Rod Distance (P): The distance between each support rod.

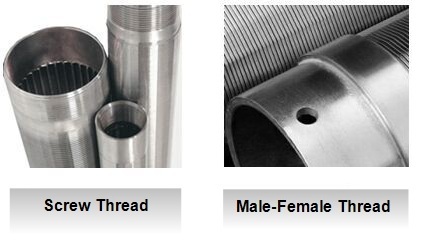

Wedge wire screen tube ending types

Application

u Water Wells

u Support and filter medium

u Solid-liquid separation

u Filter application

u Sewage treatment

u Dehydration application

u Sand treatment

Packing
