1000mm Wedge Wire Tube

1000mm Diameter Wedge Wire Screen Tube

Standard

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.

Brief description

Material

Stainless Steel:304 304L 316 316L 321

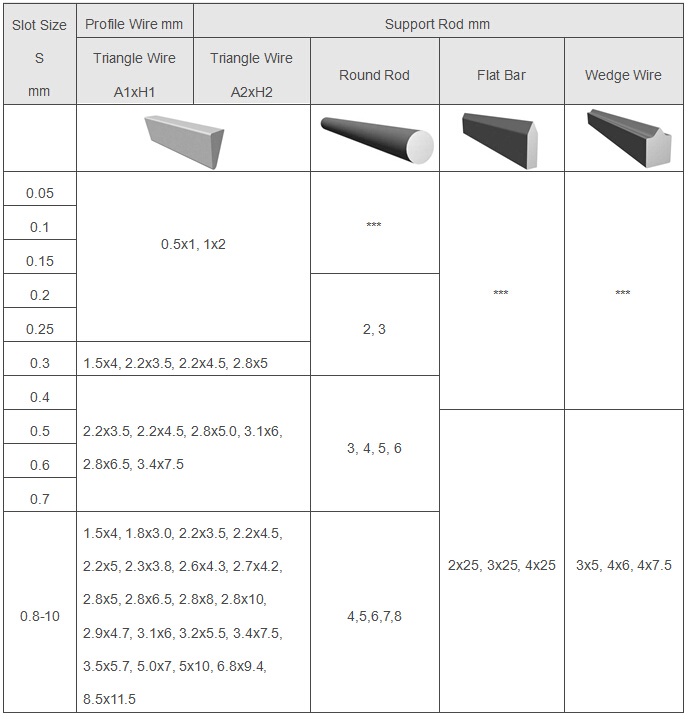

1000mm diameter wedge wire screen tube technical parameter

u For wedge wire screen tube, profile wire type is generally triangle wire.Support rod includes triangle wire,

       round rod,flat bar,wedge wire.

u The length of wedge wire screen tube is 0.3m,0.6m,1m,2m,3m,6m,12m.

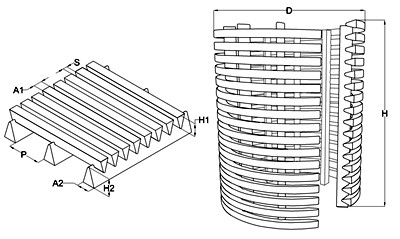

Note

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod, flat bar, wedge wire.

Support Rod Distance (P): The distance between each support rod.

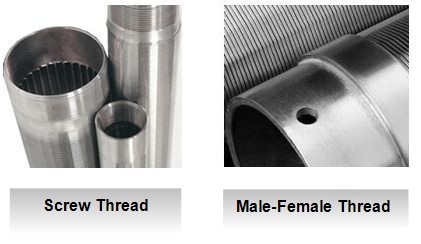

Wedge wire screen tube ending types

Application

u Water Wells

u Support and filter medium

u Solid-liquid separation

u Filter application

u Sewage treatment

u Dehydration application

u Sand treatment

Packing

Wedge wire screen tube should be packed firmly and securely. When packing, wedge wire screen tube appears in pipes. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
