6mm flat wedge wire screen

6mm slot flat wedge wire screen

Standard

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.

Brief description

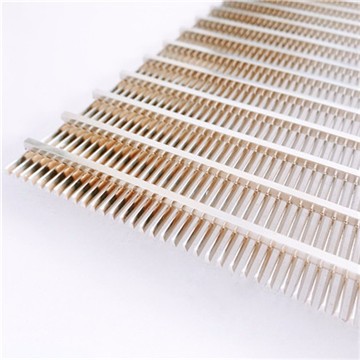

6mm slot flat wedge wire screen is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. This screen is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. 6mm slot flat wedge wire screen is widely used for energy exploration,gas processing,mining and minerals processing, food processing, paper making industry.

Material

Stainless Steel:304 304L 316 316L 321

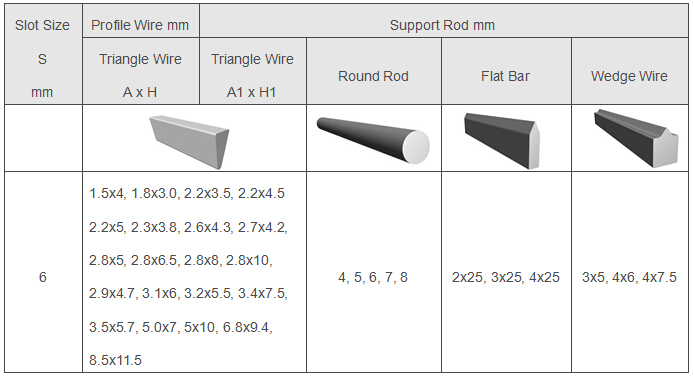

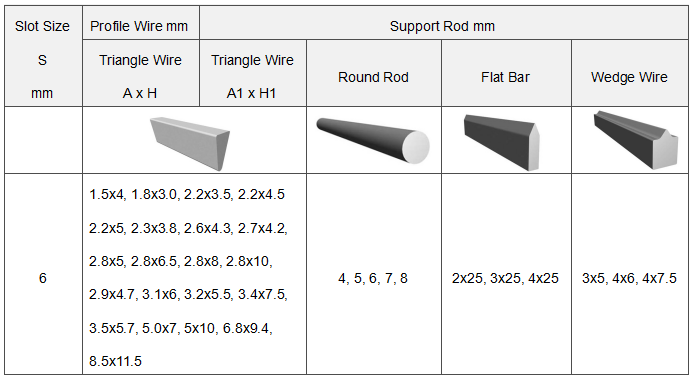

6mm flat wedge wire screen technical parameter

u For flat wedge wire screen, profile wire type is triangle wire in common.Support rod includes triangle wire,

       round rod,flat bar,wedge wire.

u Common size of flat wedge wire screen: 500x500mm-3000x3000mm,500x1000mm-2000x3000mm

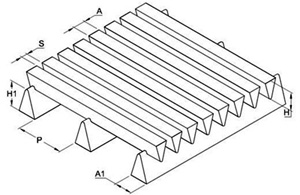

Note

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod, flat bar, wedge wire.

Support Rod Distance (P): The distance between each support rod.

Application

u energy exploration

u gas processing

u mining and minerals processing

u food processing

u paper making industry.
