0.5mm slot wedge wire screen basket

0.5mm Slot Wedge Wire Screen Basket

Standard

JB/T 4265-1999

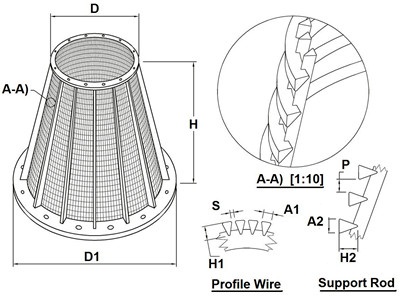

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Parameter

Brief Introduction of 0.5mm Slot Wedge Wire Screen Basket

Wedge wire screen basket material generally includes stainless steel 304,316,316L and so on.Each profile wire and support rod is contacted by resistance welding. This screen is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. Wedge wire screen basket is the key component of centrifuge dewatering equipment ,mainly used for dewatering in centrifugal dewatering machine as high-speed rotating component.When working, the screen basket not only absorb shock loads, but also bear a strong impact from coal and water, so the strength and accuracy requirements are relatively high for screen basket.Wedge wire screen basket slot size is generally 0.3 ~ 1mm, other sizes can also be customized. The wedge wire basket is connected with main machine as a whole part through the hole of top flange or down flange with bolt. Centrifuge wedge wire screen basket is widely used in many industries for screening,filtration,dehydration,mud and other operations. It has high strength, rigidity and load carrying capacity,can be made into various shapes rigid screening filter device. The product is processed by advanced welding technology.The slot screen surface has the highest screening efficiency,possessing the highest screening efficiency,the strongest earthquake tensile strength,the minimum maintenance requirements and the longest service life.

Material

Stainless Steel:304 304L 316 316L 321

Grade	EN Number	Key Characteristics & Applications
304	1.4301	non-magnetic stainless steel grade, basic stainless alloy commonly applied for wedge wire tube.
304L	1.4306	Low-carbon version of 304; superior weldability and resistance to intergranular corrosion.
316	1.4401	Marine-grade; enhanced resistance to chlorides and acids.
316L	1.4404	Low-carbon 316;the reduced carbon content for better secondary welding
321	1.4541	Titanium-stabilized; specifically designed for high-temperature service environments.

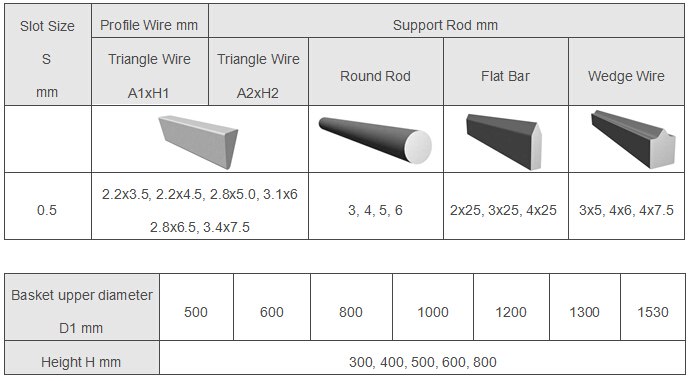

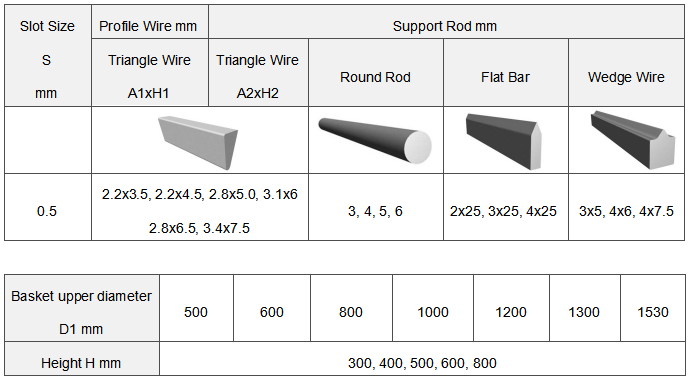

0.5mm Slot Wedge Wire Screen Basket Technical Parameter

Wedge Wire Screen Basket End Types

To accommodate various equipment installations, high-speed centrifuge configurations, and heavy structural load requirements, our wedge wire screen baskets can be customized with multiple end types, including but not limited to:

Plain Ends / Cut Edges

Flanges

Reinforcing Bands

Support Rings

Wedge Wire Screen Basket Application

Coal & Mineral Processing: Coal Preparation & Dewatering,Mineral Beneficiation

Food & Beverage Production:Sugar Refining,Starch & Juice Dewatering and Separation,Brewing & Distillation

Wastewater Treatment & Environmental Control:Sludge Dewatering,Grit & Scum Screening

Packing

Wedge wire screen basket should be packed firmly and securely. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets..We can also pack according to customer requirements.
