The Benefits of Sieve Bend Screen

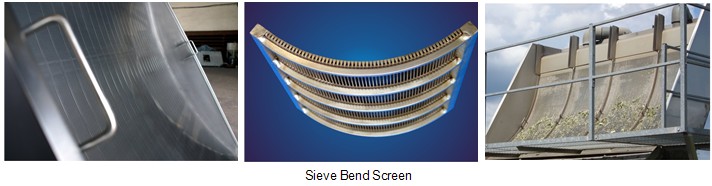

The wedge wire sieve bend screen is formed by concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow.

The sieve bend screen has greater capacity than flat screen due to the exertion of gravitational force as material flows against the curved surface.

As slurry flows down the screen, the sharp leading edge of the wedge wire slices away a thin layer of water and small particles.

Larger particles continue down the screen surface with much of the liquid removed. Separation size is considerably smaller than screen openings, usually about one half the opening size.
