What is Sieve Bend Screens

Introduction

Sieve bend screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens. Sieve bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Material

Stainless Steel: 304,304L,316,316L

Wire Type

Application

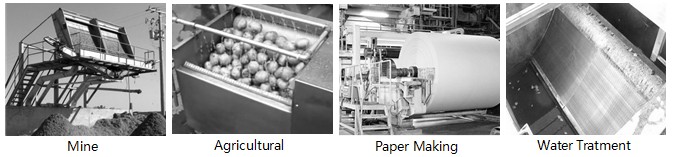

Sieve bend screens can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.
