The End Types of Wedge Wire Screen Tube

End types

Description


Plain ends

The standard wedge wire screen tube

is the most common used tubes.

Standard end tubes are always welded

onto the support profiles.

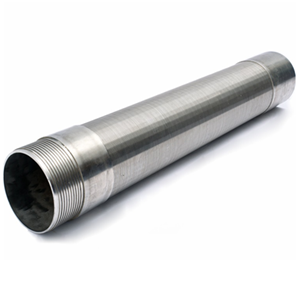

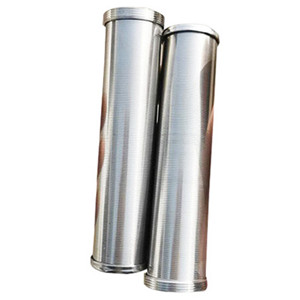

Threaded

Threaded end wedge wire screen tubes

are composed of a male thread on one

end and a female thread on the other end.

Weld Ring

The stainless steel rings are welded onto

the two ends of wedge wire tube

Flange type

The wedge wire screen tubes can be supplied with flanges. The flange provides

a larger surface area, allowing for easier attachment to other components using

bolts or clamps.

Cap end

The cap end wedge wire screen is composed of a cap on one end and and

a threaded connection on the other end.

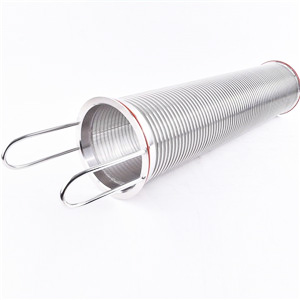

Customized type

The wedge wire tubes can be supplied

with custom end. It may include special

connections to fit specific equipment or systems.
