Mesh: 65X390mesh
Wire Dia: 0.125X0.071mm
Aperture: 42μm
Material: 201,202,301,302,304,304L,316,316L,321,430
Weave Type: plain dutch
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Filtering,Diffusing

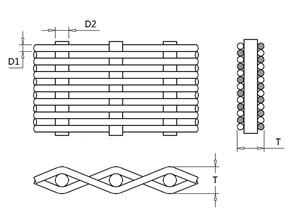

65X390 mesh plain dutch weave stainless steel wire mesh
Standard
u JB/T 5979-92
u Anping Web Wire Mesh Co.,LTD Plain Dutch Weave Process and Technical Parameter
Brief description
65X390 mesh plain dutch weave stainless steel wire mesh. Using 0.125X0.071mm diameter wire, by plain dutch weaving, woven 65X390 mesh opening for 42μm liquid or gas filter material.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
u 200 series: 201 202 205
u 300 series: 301 302 304 304L 309 309S 310 310S 316 316L 321
u 400 series: 410 420 430
Technical parameter
roll width: 1.0-1.6m
roll length: 30m
Application
u Filtering
u Diffusing
65X390 mesh plain dutch weave stainless steel wire mesh packing
Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper
or plastic film, outside wooden cases or wooden pallet.
