65X750mesh plain dutch mesh

65X750 mesh plain dutch weave stainless steel wire mesh

Standard

u JB/T 5979-92

u Anping Web Wire Mesh Co.,LTD Plain Dutch Weave Process and Technical Parameter

Brief description

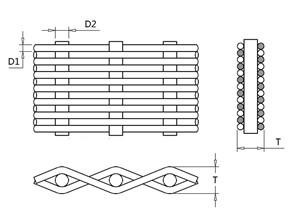

65X750 mesh plain dutch weave stainless steel wire mesh. Using 0.10X0.036mm diameter wire, by plain dutch weaving, woven 65X750 mesh opening for 36μm liquid or gas filter material.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

u 200 series: 201 202 205

u 300 series: 301 302 304 304L 309 309S 310 310S 316 316L 321

u 400 series: 410 420 430

Technical parameter

roll width: 1.0-1.6m

roll length: 30m

Application

u Filtering

u Diffusing

65X750 mesh plain dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
