Mesh: 24X24mesh
Wire Dia: 0.12-0.35mm
Aperture: 0.7-0.9mm
Material: Q195 Q235 Q275
Weave Type: plain weave
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Sifting powders,Filters,Extruder screen,Test sieves,Safety guards
24 mesh plain weave steel wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
24 mesh plain weave steel wire mesh including 24 wires and openings of 1 inch Using 0.12-0.35mm diameter wire, by plain weaving, woven 24 mesh opening for 0.7-0.9mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
Q195 Q235 Q275

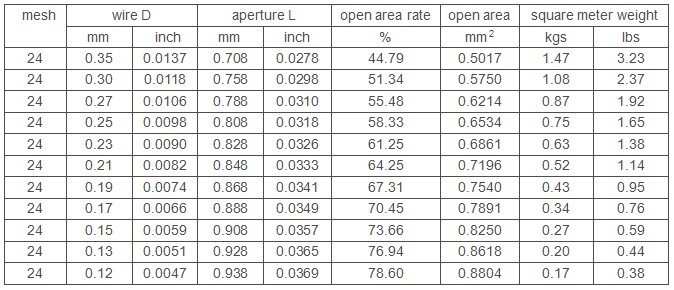

Technical parameter
roll width: 1.0-1.5m
Roll length: 30m
Application
u Sifting powders
u Filters
u Extruder screen
u Test sieves
u Safety guards
24 mesh plain weave steel wire mesh packing
Steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper
or plastic film, outside wooden cases or wooden pallet.
