14 mesh aluminum wire mesh

14 mesh plain weave aluminum wire mesh

Standard

u GB/T 5330.1-2000,  GB/T 19628.2-2005

u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description

14 mesh plain weave aluminum wire mesh including 14 wires and openings of 1 inch Using 0.19-0.5mm diameter wire, by plain weaving, woven 14 mesh opening for 1.3-1.6mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

1050 1060 1100

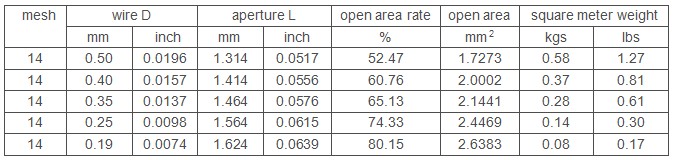

Technical parameter

roll width: 1.0-1.5m

roll length: 30m

Application

u Filter discs

u Strainers

u Air vents

u Insect/fly screen

14 mesh plain weave aluminum wire mesh packing

Aluminum wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.
