Mesh: 18X18mesh
Wire Dia: 0.17-0.35mm
Aperture: 1.0-1.2mm
Material: aluminum alloy wire
Weave Type: plain weave
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Filter discs,Strainers,Insect/fly screen,Shielding
18 mesh plain weave aluminum alloy wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
18 mesh plain weave aluminum alloy wire mesh including 18 wires and openings of 1 inch Using 0.17-0.35mm diameter wire, by plain weaving, woven 18 mesh opening for 1.0-1.2mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
5052 5056 5083

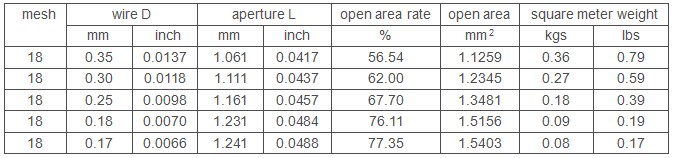

Technical parameter
roll width: 1.0-1.5m
roll length: 30m
Application
u Filter discs
u Strainers
u Insect/fly screen
u Shielding

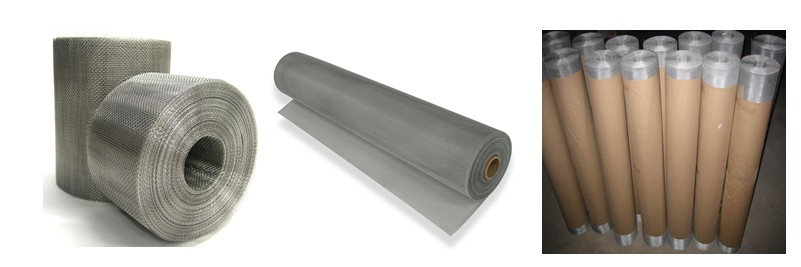

18 mesh plain weave aluminum alloy wire mesh packing
Aluminum alloy wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper
or plastic film, outside wooden cases or wooden pallet.
