Mesh: 32X32mesh
Wire Dia: 0.15-0.28mm
Aperture: 0.5-0.6mm
Material: nickel/nickel alloy wire
Weave Type: plain weave
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Liquid/gas filters,EMI/RFI shielding mesh,Fuel cells/electrodes
32 mesh plain weave nickel wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
32 mesh plain weave nickel wire mesh including 32 wires and openings of 1 inch Using 0.15-0.28mm diameter wire, by plain weaving, woven 32 mesh opening for 0.5-0.6mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
u Pure nickel: N2 N4 N6
u Nichrome: Cr20Ni80

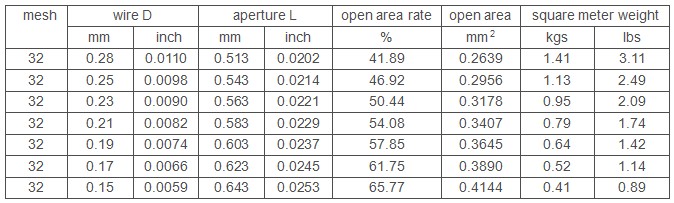

Technical parameter
roll width: 1.0-1.5m
roll length: 30m
Application
u Liquid/gas filters
u EMI/RFI shielding mesh
u Fuel cells/electrodes
32 mesh plain weave nickel wire mesh packing
Nickel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,
outside wooden cases or wooden pallet.
