Mesh: 35X35mesh
Wire Dia: 0.15-0.30mm
Aperture: 0.4-0.5mm
Material: nickel/nickel alloy wire
Weave Type: plain weave
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Liquid/gas filters,EMI/RFI shielding mesh,Fuel cells/electrodes
35 mesh plain weave nickel wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
35 mesh plain weave nickel wire mesh including 35 wires and openings of 1 inch Using 0.15-0.30mm diameter wire, by plain weaving, woven 35 mesh opening for 0.4-0.5mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
u Pure nickel: N2 N4 N6
u Nichrome: Cr20Ni80

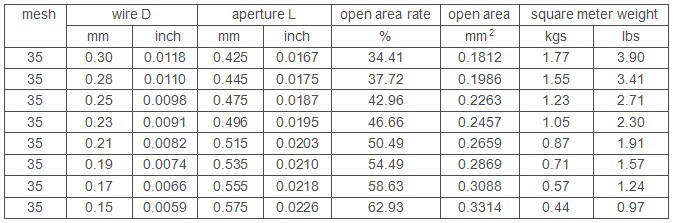

Technical parameter
roll width: 1.0-1.5m
roll length: 30m
Application
u Liquid/gas filters
u EMI/RFI shielding mesh
u Fuel cells/electrodes
35 mesh plain weave nickel wire mesh packing
Nickel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,
outside wooden cases or wooden pallet.
