Mesh: 60X60mesh
Wire Dia: 0.12-0.23mm
Aperture: 0.1-0.3mm
Material: monel wire
Weave Type: plain weave
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Liquid/gas filters,EMI/RFI shielding mesh
60 mesh plain weave monel wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
60 mesh plain weave monel wire mesh including 60 wires and openings of 1 inch Using 0.12-0.23mm diameter wire, by plain weaving, woven 60 mesh opening for 0.1-0.3mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
u Monel 400
u Monel 600

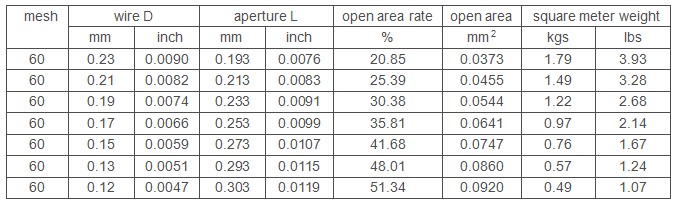

Technical parameter
roll width: 1.0-1.5m
roll length: 30m
Application
u Liquid/gas filters
u EMI/RFI shielding mesh
60 mesh plain weave monel wire mesh packing
Monel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,
outside wooden cases or wooden pallet.
MONEL® is a trademark of Special Metals Corporation.
