Mesh: 80X80mesh
Wire Dia: 0.09-0.13mm
Aperture: 0.18-0.22mm
Material: monel wire
Weave Type: plain weave
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Liquid/gas filters,EMI/RFI shielding mesh
80 mesh plain weave monel wire mesh
Standard
u GB/T 5330.1-2000, GB/T 19628.2-2005
u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter
Brief description
80 mesh plain weave monel wire mesh including 80 wires and openings of 1 inch Using 0.09-0.13mm diameter wire, by plain weaving, woven 80 mesh opening for 0.18-0.22mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
u Monel 400
u Monel 600

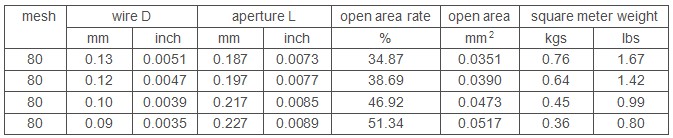

Technical parameter
roll width: 1.0-1.5m
roll length: 30m
Application
u Liquid/gas filters
u EMI/RFI shielding mesh
80 mesh plain weave monel wire mesh packing
Monel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,
outside wooden cases or wooden pallet.
MONEL® is a trademark of Special Metals Corporation.
