Shape: diamond
LWDxSWD: 1.5x0.7mm
Thickness: 0.1mm
Strand Width: 0.1mm 0.2mm
Material: Stainless Steel,Copper,Aluminum,Nickel
Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m
Application: speaker grille, battery mesh
1.5x0.7mm Expanded Metal
Standard
u QB/T 3896-1999
u Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter
Brief Description
1.5x0.7mm aperture micro expanded metal is made from 0.1mm thickness metal plate by uniformly slit and stretched,forming 1.5x0.7mm micro diamond opening in the metal sheet. For its uniform small openings and flat surface,it is widely used for headphones grille, speaker grille, phone speaker grille, battery mesh and other filtration support etc.
Material
u Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321
u Copper:red copper plate (C10200,C11000),brass plate(CuZn40,CuZn37,CuZn35,CuZn30,CuZn20,CuZn5)
u Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)
u Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600
Surface Treatment
u Anodized
u Powder coated: Black, white.
Form types
Standard Expanded Metal is directly slit and stretched by punching machines without other processing,The strand width and bond come in with an angle with the plate surface. This kind structure increase the strength and hardness of expanded metal,it also brings better anti-slipping and reinforcing performance.

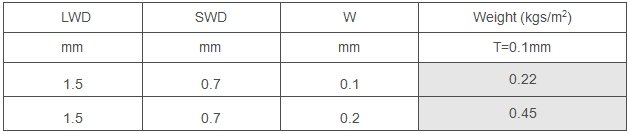

Technical parameter
Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m
Note:
u LWD stands for long way of distance
u SWD stands for short way of distance
u T stands for mesh thickness
u W stands for strand width
u The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm3,
copper or nickel density is 8.90g/cm3,aluminum density is 2.73g/cm3
Application
u headphones grille
u speaker grille
u phone speaker grille
u battery current collector mesh
u filtration support
.
Packing
