Shape: diamond
LWDxSWD: 1.5x0.8mm
Thickness: 0.1mm
Strand Width: 0.1mm 0.2mm
Material: Stainless Steel,Copper,Aluminum,Nickel
Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m
Application: speaker grille, battery mesh
1.5x0.8mm Expanded Metal
Standard
u QB/T 3896-1999
u Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter
Brief Description
Material
u Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321
u Copper:red copper plate (C10200,C11000),brass plate(CuZn40,CuZn37,CuZn35,CuZn30,CuZn20,CuZn5)
u Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)
u Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600
Surface Treatment
u Anodized
u Powder coated: Black, white.
Form types
Standard Expanded Metal is directly slit and stretched by punching machines without other processing,The strand width and bond come in with an angle with the plate surface. This kind structure increase the strength and hardness of expanded metal,it also brings better anti-slipping and reinforcing performance.

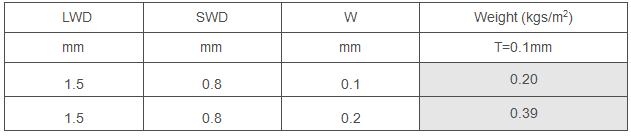

Technical parameter
Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m
Note:
u LWD stands for long way of distance
u SWD stands for short way of distance
u T stands for mesh thickness
u W stands for strand width
u The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm3,
copper or nickel density is 8.90g/cm3,aluminum density is 2.73g/cm3
u headphones grille
u speaker grille
u phone speaker grille
u battery current collector mesh
u filtration support
.
Packing
