Mesh: 78X680mesh
Wire Dia: 0.112X0.08mm
Aperture: 29μm
Material: 201,202,301,302,304,304L,316,316L,321,430
Weave Type: twill dutch
Roll Width: 1.0m,1.2m,1.5m
Roll Length: 30m
Application: Filtering,Diffusing

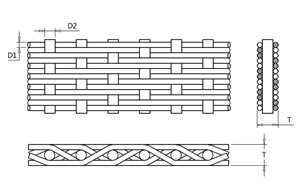

78X680 mesh twill dutch weave stainless steel wire mesh
Standard
u JB/T 5979-92
u Anping Web Wire Mesh Co.,LTD Twill Dutch Weave Process and Technical Parameter
Brief description
78X680 mesh twill dutch weave stainless steel wire mesh.Using 0.112X0.08mm diameter wire, by twill dutch weaving, woven 78X680 mesh opening for 29μm liquid or gas filter.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Material
u 200 series: 201 202 205
u 300 series: 301 302 304 304L 309 309S 310 310S 316 316L 321
u 400 series: 410 420 430
Technical parameter
roll width: 1.0-1.6m
roll length: 30m
Application
u Filtering
u Diffusing
78X680 mesh twill dutch weave stainless steel wire mesh packing
Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper
or plastic film, outside wooden cases or wooden pallet.
