78X760 mesh twill dutch mesh

78X760 mesh twill dutch weave stainless steel wire mesh

Standard

u JB/T 5979-92

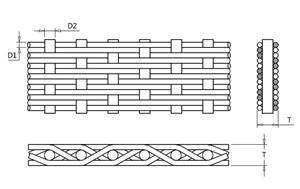

u Anping Web Wire Mesh Co.,LTD Twill Dutch Weave Process and Technical Parameter

Brief description

78X760 mesh twill dutch weave stainless steel wire mesh.Using 0.112X0.071mm diameter wire, by twill dutch weaving, woven 78X760 mesh, it can be used as a liquid or gas filter material.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

u 200 series: 201 202 205

u 300 series: 301 302 304 304L 309 309S 310 310S 316 316L 321

u 400 series: 410 420 430

Technical parameter

roll width: 1.0-1.6m

roll length: 30m

Application

u Filtering

u Diffusing

78X760 mesh twill dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
