250X1900 mesh twill dutch

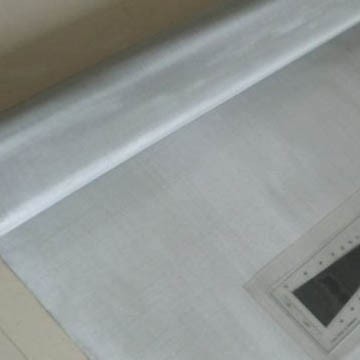

250X1900 mesh twill dutch weave stainless steel wire mesh

Standard

u JB/T 5979-92

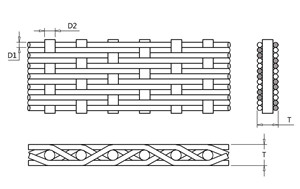

u Anping Web Wire Mesh Co.,LTD Twill Dutch Weave Process and Technical Parameter

Brief description

250X1900 mesh twill dutch weave stainless steel wire mesh.Using 0.04X0.028mm diameter wire, by twill dutch weaving, woven 250X1900 mesh opening for 8μm liquid or gas filter.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

300 series: 316L

Technical parameter

roll width: 1.0-1.6m

roll length: 30m

Application

u Filtering

u Diffusing

250X1900 mesh twill dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
