300X2100 mesh twill dutch stainless steel mesh

300X2100 mesh twill dutch weave stainless steel wire mesh

Standard

JB/T 5979-92

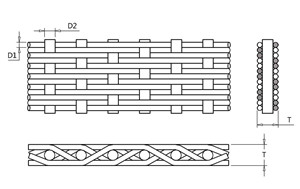

Anping Web Wire Mesh Co.,LTD Twill Dutch Weave Process and Technical Parameter

Brief description of 300X2100 mesh twill dutch weave stainless steel wire mesh

300X2100 mesh twill dutch weave stainless steel wire mesh.Using 0.036X0.025mm diameter wire, by twill dutch weaving, woven 300X2100 mesh opening for 6μm liquid or gas filter.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

300 series: 316L

A low-carbon version of 316. It provides better wire flexibility for weaving and eliminates the risk of intergranular corrosion after welding.

300X2100 mesh twill dutch weave stainless steel wire mesh technical parameter

roll width: 1.0-1.6m

roll length: 30m

300X2100 mesh twill dutch weave stainless steel wire mesh application

Pharmaceutical industry: filtration systems for separating fine particles from liquids and gases

Chemical industry: separation processes and catalyst recovery

Food and beverage industry: removing contaminants from liquids and gases

Oil and gas industry: filtration systems to remove impurities from fluids

Water treatment plants: filtering particulates in water purification systems,municipal water treatment, industrial effluent processing, and even in aquarium filtration systems

300X2100 mesh twill dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
